Broyeur planétaire

PULVERISETTE 5

premium line

Référence
05.7020.00
Accessoires

Veuillez tenir compte des points suivants : Un micro-broyeur planétaire PULVERISETTE 5 premium line doit être complété d'au moins 2 bols de broyage de votre choix et du nombre approprié de billes de broyage. D'autre part, le matériau des bols de broyage doit être plus dur que celui du matériau à broyer. En règle générale, le bol de broyage et les billes utilisés sont fabriqués dans le même matériau. Pour réduire la durée de broyage, il est possible d'utiliser des bols plus grands et plus lourds et des billes de broyage de densité supérieure, et donc d'appliquer une énergie de rupture plus importante. Tenir compte du volume utile car il diffère du volume du bol.

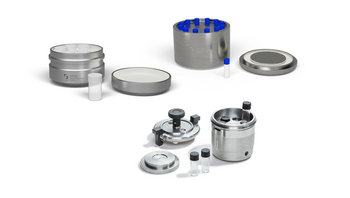

BOLS DE BROYAGE

Aide à la sélection

  • Caractéristiques matériau des bols de broyage/billes de broyage

    Matériau Composant principal du matériau Densité en g/cm³ Résistance à l'abrasion Type d'échantillon
    agate SiO2 2,65 bonne échantillons mous à mi-durs
    oxyde de zirconium ZrO2 5,7 très bonne échantillons fibreux, abrasifs
    trempé, acier inoxydable Fe – Cr 7,7 bonne échantillons durs, mi-durs, cassants
    métal dur carbure de tungstène WC 14,3 très bonne échantillons très durs, abrasif
  • Taille des billes de broyage

    Type de matières à traiter Diamètre approprié des billes
    Échantillons durs d'une taille initiale maximale de 10 mm 20 mm
    Taille initiale moyenne des matériaux à broyer ≤ 5 mm 20 mm, 15 mm ou 10 mm
    Matériau fin ≤ 0,1 - 0,5 mm 10 mm ou moins
    Matériau très fin ≤ 0,1 mm 3 mm ou moins
    Homogénéisation d'échantillons secs ou liquides 20 mm ou moins
    Homogénéisation d'échantillons visqueux 20 mm
  • Nombre de billes recommandé par bol de broyage

    Billes de broyage ≥ 5 mm
    Nombre de billes recommandé par bol
    Bol de broyage /
    volume utile (échantillon)
    125 ml
    15 – 50 ml
    150 ml
    20 – 70 ml
    250 ml
    30 – 125 ml
    420 ml
    60 – 200 ml
    500 ml
    80 – 225 ml
    Ø de billes
    20 mm 9 12 15 20 25
    15 mm 25 35 45 60 70
    10 mm 35 40 50 80 100
    5 mm 600 900 1200 1800 2000
    Billes de broyage ≤ 3 mm
    Masse recommandée de billes par bol, en grammes
    Bol de broyage /
    volume utile (échantillon)
    150 ml
    20 – 70 ml
    250 ml
    30 - 125 ml
    500 ml
    80 – 225 ml
    Matériau
    oxyde de zirconium 170 g 400 g 800 g
    trempé, acier inoxydable 350 g 500 g 1100 g
    métal dur carbure de tungstène 800 g 1000 g 2100 g
  • Autres informations

    Les billes de broyage de diamètre maximum ou égal à 3 mm doivent être pesées. Le tableau précédent indique la masse requise par bol de broyage.

    Le remplissage de billes par bol indiqué est la quantité minimum et peut devoir être augmentée si le comportement du matériau l'exige. Il est possible de réduire la quantité de billes de broyage de jusqu'à 15 %, ce qui peut provoquer une abrasion supérieure à celle prévue. En général, les plus petites billes de broyage permettent d'otenir des résultats de broyage plus fins.

    En règle générale, le bol de broyage et les billes utilisés sont fabriqués dans le même matériau. Pour réduire la durée de broyage, il est possible d'utiliser des bols et des billes de broyage de densité supérieure et donc d'appliquer une énergie de rupture plus importante.

Choisissez au moins 2 bols de broyage adapté au volume de l'échantillon ; ils existent dans les tailles 500 ml, 250 ml et 160 ml. Vous trouverez des détails concernant le volume utile dans l'aide à la sélection. Tous les bols de broyage de la série FRITSCH premium line sont sertis d'acier inoxydable, présentent un repère et présentent tous le même diamètre intérieur, quel que soit leur contenu.
Nous proposons tous les bols de broyage en 4 matériaux différents afin de toujours obtenir le meilleur résultat de broyage. Nous évitons ainsi toute contamination des échantillons résultant d'une abrasion indésirable, de manière ciblée.

CHOISISSEZ LE VOLUME DU BOL DE BROYAGE

Bol de broyage de volume 420-500 ml

agate - SiO2 - with steel casing
N° 50.6400.00
agate with steel casing, 420 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 420 ml
Useful capacity: 60 … 200 ml
Weight net: 2.700 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
N° 50.6490.00
zirconium oxide with steel casing, 500 ml volume  for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 500 ml
Useful capacity: 80 … 225 ml
Weight net: 3.700 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N° 50.6550.00
hardened, stainless steel, 500 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 500 ml
Useful capacity: 80 … 225 ml
Weight net: 4.800 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
N° 50.6580.00
hardmetal tungsten carbide with steel casing, 500 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 500 ml
Useful capacity: 80 … 225 ml
Weight net: 6.500 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

Bol de broyage de volume 250 ml

agate - SiO2 - with steel casing
N° 50.6610.00
agate with steel casing, 250 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 3.400 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
N° 50.6700.00
zirconium oxide with steel casing, 250 ml volume  for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 4.200 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr - with steel casing
N° 50.6760.00
hardened, stainless steel with steel casing, 250 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 4.600 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
N° 50.6790.00
hardmetal tungsten carbide with steel casing, 250 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 6.200 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

Bol de broyage de volume 125-150 ml

agate - SiO2 - with steel casing
N° 50.6840.00
agate with steel casing, 125 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 125 ml
Useful capacity: 15 … 50 ml
Weight net: 1.970 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
N° 50.6900.00
zirconium oxide with steel casing, 150 ml volume  for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 150 ml
Useful capacity: 20 … 70 ml
Weight net: 2.500 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N° 50.6920.00
hardened, stainless steel, 150 ml volume for PULVERISETTE 5<i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 150 ml
Useful capacity: 20 … 70 ml
Weight net: 2.850 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
N° 50.6940.00
hardmetal tungsten carbide with steel casing, 150 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 150 ml
Useful capacity: 20 … 70 ml
Weight net: 4.200 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
Adapter for all Grinding Bowls PULVERISETTE 5 premium line 125-150 ml volume
N° 50.6837.00
for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Adapter for all grinding bowls PULVERISETTE 5 premium line 125-150 ml volume, essential for weight compensation, if only one grinding bowl is inserted in the grinding bowl holder.


Stacking ring for all grinding bowls PULVERISETTE 5 premium line 125-150 ml volume
N° 50.6830.00
for grinding bowls PULVERISETTE 5 <i>premium line</i>

Essential, if 2 grinding bowls 125-150 ml volume per grinding bowl holder are used.


If you would like to grind four samples simultaneously, simply order four grinding bowls, each with 125-150 volume and 2 stacking rings.


Accessoires pour tous les bols de broyage PULVERISETTE 5 premium line

replacement grinding bowl seal tape
N° 50.6980.24
replacement grinding bowl seal tape

Replacement grinding bowl seal tape for all grinding bowls premium line 125-500 ml volume.

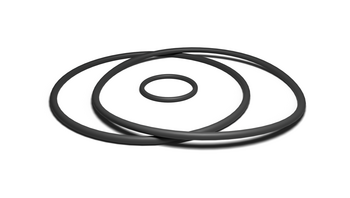

Replacement seal ring Viton 88.49 x 3.53 for premium line grinding bowls 125-150 ml volume
N° 84.0163.15

Replacement seal ring Viton 88.49 x 3.53 mm for  premium line grinding bowls  125-150 ml volume.


Due to its much higher chemical resistance, it's perfect for grinding in basic solvents or dry grinding of slightly caustic samples.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialViton
Chemical composition
ElementShare %
Fluorine - F66
Carbon - C34
Physical and mechanical properties
Density1.84 g/cm³
Hardness75 shore A


Explanations on hardness data
replacement seal ring Viton 88 x 4 mm for premium line grinding bowls 250-500 ml volume
N° 84.0164.15

Replacement seal ring Viton 88 x 4 mm for  premium line grinding bowls 250-500 volume, all gassing lids for premium line grinding bowls 125-500 ml volume and all EASY GTM grinding bowls 250 ml volume.


Due to its much higher chemical resistance, it's perfect for grinding in basic solvents or dry grinding of slightly caustic samples.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialViton
Chemical composition
ElementShare %
Fluorine - F66
Carbon - C34
Physical and mechanical properties
Density1.84 g/cm³
Hardness75 shore A


Explanations on hardness data

BILLES DE BROYAGE

Aide à la sélection

  • Caractéristiques matériau des bols de broyage/billes de broyage

    Matériau Composant principal du matériau Densité en g/cm³ Résistance à l'abrasion Type d'échantillon
    agate SiO2 2,65 bonne échantillons mous à mi-durs
    oxyde de zirconium ZrO2 5,7 très bonne échantillons fibreux, abrasifs
    trempé, acier inoxydable Fe – Cr 7,7 bonne échantillons durs, mi-durs, cassants
    métal dur carbure de tungstène WC 14,3 très bonne échantillons très durs, abrasif
  • Taille des billes de broyage

    Type de matières à traiter Diamètre approprié des billes
    Échantillons durs d'une taille initiale maximale de 10 mm 20 mm
    Taille initiale moyenne des matériaux à broyer ≤ 5 mm 20 mm, 15 mm ou 10 mm
    Matériau fin ≤ 0,1 - 0,5 mm 10 mm ou moins
    Matériau très fin ≤ 0,1 mm 3 mm ou moins
    Homogénéisation d'échantillons secs ou liquides 20 mm ou moins
    Homogénéisation d'échantillons visqueux 20 mm
  • Nombre de billes recommandé par bol de broyage

    Billes de broyage ≥ 5 mm
    Nombre de billes recommandé par bol
    Bol de broyage /
    volume utile (échantillon)
    125 ml
    15 – 50 ml
    150 ml
    20 – 70 ml
    250 ml
    30 – 125 ml
    420 ml
    60 – 200 ml
    500 ml
    80 – 225 ml
    Ø de billes
    20 mm 9 12 15 20 25
    15 mm 25 35 45 60 70
    10 mm 35 40 50 80 100
    5 mm 600 900 1200 1800 2000
    Billes de broyage ≤ 3 mm
    Masse recommandée de billes par bol, en grammes
    Bol de broyage /
    volume utile (échantillon)
    150 ml
    20 – 70 ml
    250 ml
    30 - 125 ml
    500 ml
    80 – 225 ml
    Matériau
    oxyde de zirconium 170 g 400 g 800 g
    trempé, acier inoxydable 350 g 500 g 1100 g
    métal dur carbure de tungstène 800 g 1000 g 2100 g
  • Autres informations

    Les billes de broyage de diamètre maximum ou égal à 3 mm doivent être pesées. Le tableau précédent indique la masse requise par bol de broyage.

    Le remplissage de billes par bol indiqué est la quantité minimum et peut devoir être augmentée si le comportement du matériau l'exige. Il est possible de réduire la quantité de billes de broyage de jusqu'à 15 %, ce qui peut provoquer une abrasion supérieure à celle prévue. En général, les plus petites billes de broyage permettent d'otenir des résultats de broyage plus fins.

    En règle générale, le bol de broyage et les billes utilisés sont fabriqués dans le même matériau. Pour réduire la durée de broyage, il est possible d'utiliser des bols et des billes de broyage de densité supérieure et donc d'appliquer une énergie de rupture plus importante.

Nous proposons des billes de broyage de différents diamètres compris entre 0,1 et 40 mm et en  matériaux différents. Nous évitons ainsi toute contamination des échantillons résultant d'une abrasion indésirable, de manière ciblée. Le nombre de billes recommandé par bol de broyage est indiqué dans l'aide à la sélection.

CHOISISSEZ LE DIAMÈTRE DES BILLES DE BROYAGE

Billes de broyage de diamètre 20 mm pour bol de broyage 500 ML, 420 ML, 250 ML, 150 ml, 125 ML

agate - SiO2 - polished
N° 55.0200.05
Grinding ball agate 20 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample


ANALYSE DE RÉFÉRENCE
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
N° 55.0200.27
Grinding ball zirconium oxide, 20 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N° 55.0200.09
Grinding ball hardened, stainless steel, 20 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
N° 55.0200.08
Grinding ball hardmetal tungsten carbide, 20 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

BILLES DE BROYAGE DE DIAMÈTRE 15 MM POUR BOL DE BROYAGE 500 ML, 420 ML, 250 ML, 150 ml, 125 ML

agate - SiO2 - polished
N° 55.0150.05
Grinding ball agate 15 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample


ANALYSE DE RÉFÉRENCE
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
N° 55.0150.27
Grinding ball zirconium oxide, 15 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N° 55.0150.09
Grinding ball hardened, stainless steel, 15 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: medium-hard, brittle samples


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
N° 55.0150.08
Grinding ball hardmetal tungsten carbide, 15 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

BILLES DE BROYAGE DE DIAMÈTRE 10 MM POUR BOL DE BROYAGE 500 ML, 420 ML, 250 ML, 150 ml, 125 ML

agate - SiO2 - polished
N° 55.0100.05
Grinding ball agate 10 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Grinding balls made of agate with 10 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 10 pieces.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
N° 55.0100.27
Grinding ball zirconium oxide, 10 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N° 55.0100.09
Grinding ball hardened, stainless steel, 10 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
N° 55.0100.08
Grinding ball hardmetal tungsten carbide, 10 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

BILLES DE BROYAGE DE DIAMÈTRE 5 MM POUR BOL DE BROYAGE 500 ML, 420 ML, 250 ML, 150 ml, 125 ML

agate - SiO2 - polished
N° 55.0050.05
Grinding ball agate, 5 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
100 grinding balls made of agate with 5 mm dia. weigh approx. 17 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.
Grinding balls made of agate with 5 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 15 pieces.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
N° 55.0050.27
Grinding ball zirconium oxide, 5 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
100 grinding balls made of zirconium oxide with 5 mm dia. weigh approx. 38 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N° 55.0050.09
Grinding ball hardened, stainless steel, 5 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
100 grinding balls made of hardened, stainless steel with 5 mm dia. weigh approx. 52 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
N° 55.0050.08
Grinding ball hardmetal tungsten carbide, 5 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
100 grinding balls made of hardmetal tungsten carbide with 5 mm dia. weigh approx. 97 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

Billes de broyage de diamètre ≤ 3 mm pour bol de broyage 500 ML, 250 ML, 150 ml

3 mm dia. zirconium oxide ZrO2
N° 55.0030.27
Grinding balls zirconium oxide 3 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
2 mm dia. zirconium oxide ZrO2
N° 55.0020.27
Grinding balls zirconium oxide 2 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 2 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1.5 mm dia. zirconium oxide ZrO2
N° 55.0015.27
Grinding balls zirconium oxide 1.5 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1 mm dia. zirconium oxide ZrO2
N° 55.0010.27
Grinding balls zirconium oxide 1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
0.5 mm dia. zirconium oxide ZrO2
N° 55.0005.27
Grinding balls zirconium oxide 0.5 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
0.1 mm dia. zirconium oxide ZrO2
N° 55.0001.27
Grinding balls zirconium oxide 0.1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
3 mm dia. hardened, stainless steel - Fe - Cr
N° 55.0030.09
Grinding balls hardened, stainless steel 3 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
1 mm dia. hardened, stainless steel - Fe - Cr
N° 55.0010.09
Grinding balls hardened, stainless steel 1 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
3 mm dia. hardmetal tungsten carbide - WC
N° 55.0030.08
Grinding balls hardmetal tungsten carbide 3 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
1.6 mm dia. hardmetal tungsten carbide - WC
N° 55.0016.08
Grinding balls hardmetal tungsten carbide 1.6 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 1.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
0.6 mm dia. hardmetal tungsten carbide - WC
N° 55.0006.08
Grinding balls hardmetal tungsten carbide 0.6 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 0.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC92.94
Cobalt – Co7.00
Other0.06
Physical and mechanical properties
Density14.9 g/cm³
Hardness91.5


Explanations on hardness data

Accessoires spéciaux

Le logiciel MillControl assure la commande automatique du broyeur planétaire PULVERISETTE 5 premium line et la validation du broyage. La vitesse de rotation nominale/réelle et la puissance absorbée sont contrôlées et documentées. En utilisant les bols de broyage EASY GTM à couvercle spécial et à émetteur, vous transformez votre PULVERISETTE 5 premium line en un système analytique de mesure destiné à représenter les valeurs de pression et de température inhérentes au broyage.
Nous recommandons d'utiliser des couvercles à injection de gaz premium line pour effectuer un broyage rapide et sûr sous gaz inerte, une mécano synthèse et une activation.
Un certificat IQ/OQ est également disponible.

CHOISISSEZ LES ACCESSOIRES SPÉCIAUX

LOGICIEL MILLCONTROL

Software MillControl for Windows
N° 83.5605.00
for Windows for automatic control of the mill and validation of the grinding process

The software MillControl enables the automatic control of the Planetary Micro Mill PULVERISETTE 7 and Planetary Mill PULVERISETTE 5 premium line and validation of the grinding process. The actual rotational speed and power consumption are checked and documented. The software is a distinct safety feature, since overpressure and a rise in temperature are avoided and defects on the mill and a sticking of the sample material prevented.

Detailed information on MillControl is available here


EASY GTM - SYSTÈME DE MESURE DE PRESSION DU GAZ ET DE TEMPÉRATURE POUR CONTRÔLER LE BROYAGE

Receiver unit - board and software MillControl
N° 81.0013.00
receiver unit – board and software MillControl

Turn your Planetary Mill PULVERISETTE 5 premium line and Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software.
Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
Especially practical: The receiver unit needs only to be inserted and adjusted just once – the software MillControl via USB only installed once - regardless of the number of EASY GTM-bowls used.
Only one receiver unit with software MillControl has to be ordered. EASY GTM is also available for further grinding bowl volumes on request.


250 ml grinding bowl made of zirconium oxide - ZrO2 with special lid with gassing valves and transmitter
N° 50.9250.00
grinding bowl zirconium oxide with special lid with gassing valves and transmitter, 250 ml

For the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature.
Turn your Planetary Mill PULVERISETTE 5 premium line and into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in hardened, stainless steel and hardmetal tungsten carbide.
Only one receiver unit with software MillControl has to be ordered.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
250 ml grinding bowl made of hardened, stainless steel - Fe-Cr with special lid with gassing valves and transmitter
N° 50.9280.00
grinding bowl hardened, stainless steel with special lid with gassing valves and transmitter, 250 ml

For the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature.
Turn your Planetary Mill PULVERISETTE 5 premium line  into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in zirconium oxide and and hardmetal tungsten carbide.
Only one receiver unit with software MillControl has to be ordered.


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
250 ml grinding bowl made of hardmetal tungsten carbide - WC with special lid with gassing valves and transmitter
N° 50.9310.00
grinding bowl hardmetal tungsten carbide with special lid with gassing valves and transmitter, 250 ml

For the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature.
Turn your Planetary Mill PULVERISETTE 5 premium line  into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in zirconium oxide and stainless steel.
Only one receiver unit has to be ordered, regardless of the number of EASY GTM-bowls used.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

ACCESSOIRES POUR BROYAGE SOUS GAZ INERTE ET ALLIAGE MÉCANIQUE

COUVERCLE À INJECTION DE GAZ AVEC VANNES ET GARNITURE

agate - SiO2 - with steel casing
N° 50.6407.00

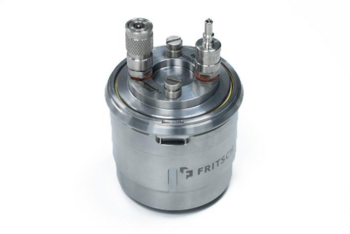

agate with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Agate gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml,  150 and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
N° 50.6497.00
zirconium oxide with steel casing for all grinding bowls PULVERISETTE 5  <i>premium line</i>

Zirconium oxide gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml,  150 and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened stainless steel - Fe - Cr - with steel casing
N° 50.6557.00
hardened stainless steel with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

hardened stainless steel gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
N° 50.6587.00
hardmetal tungsten carbide with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Hardmetal tungsten carbide gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

Couvercles de bols de broyage à vis avec joint

agate - SiO2 - with steel casing
N° 50.6405.00
agate with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Screw-on grinding bowl lid agate with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
N° 50.6495.00
zirconium oxide with with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Screw-on grinding bowl lid zirconium oxide with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened stainless steel - Fe - Cr - with steel casing
N° 50.6555.00
hardened stainless steel with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Screw-on grinding bowl lid hardened stainless steel with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
N° 50.6585.00
hardmetal tungsten carbide with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Screw-on grinding bowl lid hardmetal tungsten carbide with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

CERTIFICATION

IQ/OQ documentation (questionnaire format - implementation not included)
N° 96.0310.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Planetary Mill PULVERISETTE 5 premium line.


Référence
05.7020.00
Helen Müller
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Téléphone +49 67 84 70 0

Base de données sur les protocoles de broyage

EFFECTUEZ UN TEST

TEST DE BROYAGE GRATUIT

Faites-nous parvenir un échantillon, nous le soumettrons à un test de broyage - nous vous enverrons un compte rendu individuel de broyage.
