Broyeur à couteaux universel - réglable 50-700 tr/min

PULVERISETTE 19

Référence
19.1030.00
Accessoires

Configurez votre broyeur à couteaux universel PULVERISETTE 19 à une vitesse de rotation variable 50 - 700 tr/min adaptée à votre application.

Parmi les nombreux accessoires, choisissez au moins une trémie d'alimentation, un jeu d'outils de coupe, une cassette à tamis et un récipient collecteur.

Trémie d'alimentation
Trémie d'alimentation pour échantillons longs et en vrac en plastique ou acier inoxydable 316L, ou
trémie étanche en acier inoxydable avec sas et coulisseau en plastique

Jeu d'outils de coupe
Rotor standard avec lames en V et contre-couteaux en acier inoxydable trempé, en métal dur carbure de tungstène ou en acier à outil sans chrome, ou
rotor avec couteaux droits et contre-couteaux en acier inoxydable trempé ou en acier à outil sans chrome, ou
rotor à fraise circulaire avec plaquettes de coupe interchangeables et contre-couteaux en métal dur carbure de tungstène

Cassette à tamis
Cassettes à tamis à perforation trapézoïdale ou carrée en acier inoxydable 316L ou en acier sans chrome DC01

Récipient collecteur
Récipient collecteur de 3 litres ou récipient collecteur de grande quantités de 10 litres

Accessoires disponibles en option

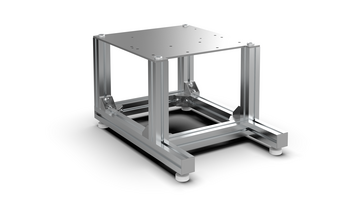

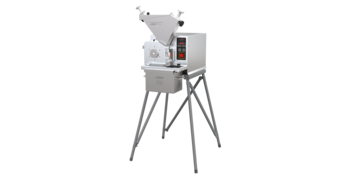

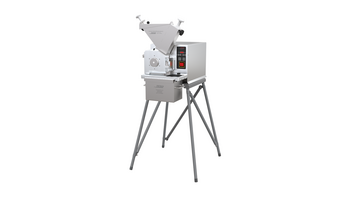

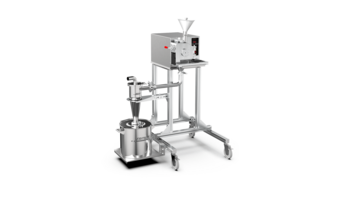

Support : support universel, support à roulettes ou support en acier inoxydable 316L

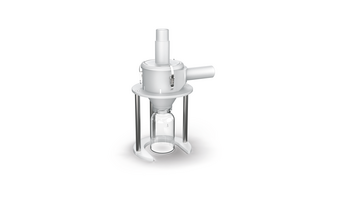

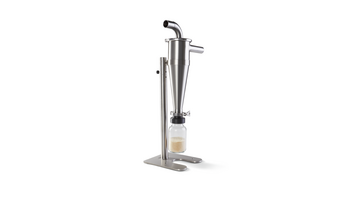

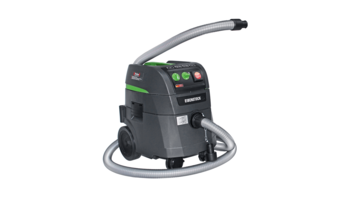

Aspiration de l'échantillon via des cyclones : Cyclone haute performance, cyclone standard ou cyclone pour petites quantités
Certification : Documentation IQ/OQ destinée à aider à la qualification des appareils

TRÉMIES d'alimentation

Vous pouvez équiper la PULVERISETTE 19 d'une trémie d'alimentation en plastique ou en acier inoxydable 316L pour matériaux longs et en vrac pouvant être introduits dans toute leur longueur, ou bien d'une trémie étanche en acier inoxydable avec sas et coulisseau en plastique destinée à tous les autres matériaux.

CHOISISSEZ LA TRÉMIE

Trémies d'alimentation

standard funnel for long- and bulk solids
N° 19.1550.00
Standard funnel for long- and bulk solids

With the FRITSCH standard funnel free-flowing bulk solids as well as straw, films or similar materials can be inserted at full length. Both ends of the plunger of the funnel for long and bulk solids can be utilised: the small end for adding of long goods and the wide end for bulk solids.


ANALYSE DE RÉFÉRENCE
1. Stopper-Body
General specifications
MaterialAluminium AlZnMgCu1,5
ISO/EN/DIN Code3.4365
Chemical composition
ElementShare %
Iron – Fe0.50
Silicon – Si0.40
Copper – Cu1.2 - 2.0
Manganese – Mn0.30
Magnesium – Mg2.1 - 2.9
Chromium– Cr0.18 - 0.28
Zinc - Zn5.1 - 6.1
Titan – Ti0.20
Physical and mechanical properties
Density2.7 g/cm³
Hardness2.75 Mohs


2. Fillingtube
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi1810
Chemical composition
ElementShare %
Iron – Fe66.805
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.8 g/cm³
HardnessHRB 96




Explanations on hardness data

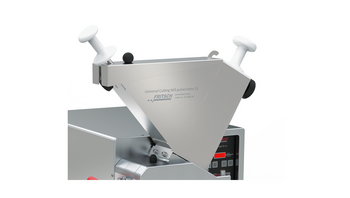

protected funnel with sample pusher
N° 19.1850.00
Protected funnel with sample pusher

The protected funnel with sample pusher enables due to the sample pusher a good handling and an outstanding material feeding.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi1810
Chemical composition
ElementShare %
Iron – Fe66.805
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.8 g/cm³
HardnessHRB 96


Explanations on hardness data
funnel for long- and bulk solids, stainless steel 316L
N° 19.1559.00
Funnel for long- and bulk solids made of stainless steel 316L

Funnel for long- and bulk solids made in a corrosion-resistant stainless steel version 316L for applications in the food and pharmaceutical industry.
With this FRITSCH funnel free-flowing bulk solids as well as straw, films or similar materials can be inserted at full length. Both ends of the plunger of the funnel for long and bulk solids can be utilised: the small end for adding of long goods and the wide end for bulk solids.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

Récipients collecteurs en acier inoxydable 316L

Un récipient collecteur de 3 litres est disponible. Nous recommandons d'utiliser un récipient collecteur de 10 litres pour le broyage de grande quantités. Des récipients collecteurs de différente taille sont disponibles sur demande.

CHOISISSEZ UN RÉCIPIENT COLLECTEUR

RÉCIPIENTS COLLECTEURS

3 litres
N° 45.5730.00

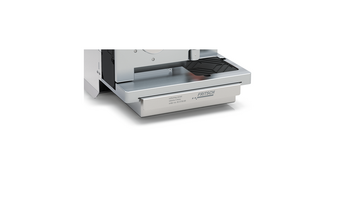

Collecting vessel, 3 litres

This collection vessel has a volume of 3 litres. Collection vessels (stainless steel are available in various sizes).


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

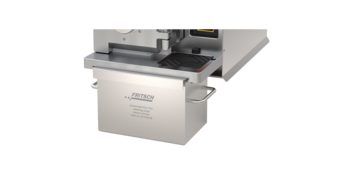

10 litres - for large quantities
N° 45.5700.00

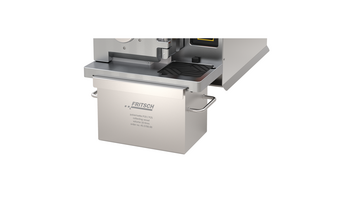

Collecting vessel for large quantities, 10 litres

This collection vessel is recommended for the comminution of larger sample amounts and has a volume of 10 litres.
Collection vessels (stainless steel are available in various sizes).


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

JEUX D'OUTILS DE COUPE

Aide à la sélection

  • Caractéristiques des jeux d'outils de coupe et applications recommandées

    Matériau et type de rotor Composant principal du matériau Résistance à l'abrasion Densité en g/cm³ Convient au broyage de
    Acier inoxydable trempé Fe - Cr relativement bonne 7,7
    Rotor standard avec lames en V et contre-couteaux
    référence 45.5100.00




    Rotor avec couteaux droits et contre-couteaux
    référence 45.5185.00
    échantillons mi-durs, cassants, matériaux et films viscoplastiques

    échantillons mi-durs, cassants, matériaux facilement sectionnables de type foin, paille, matériaux fibreux et biologiques
    Métal dur carbure de tungstène

    WC très bonne 12,4
    Rotor avec lames en V et contre-couteaux
    référence 45.5370.00



    Rotor à fraise circulaire avec plaguettes de coupe interchangeables et contre-couteaux
    référence 45.5200.00
    échantillons durs et abrasifs, matériaux durs-résistants

    échantillons durs, abrasifs, fragmentation des déchets de platines qui contiennent des restes de fibres de verre et de câbles en cuivre

Le broyeur PULVERISETTE 19 peut être équipé soit d'un rotor avec lames en V ou avec couteaux droits, soit d'un rotor à fraise circulaire. Le choix du matériau des rotors de coupe et des contre-couteaux permet d'influencer le comportement à l'abrasion au cas par cas. Tous les détails concernant les rotors de coupe et les matériaux se trouvent dans l'aide à la sélection. Des jeux d'outils de coupe sont également disponibles en d'autres matériaux.

CHOISISSEZ UN JEU D'OUTILS DE COUPE

JEUX D'OUTILS DE COUPE EN ACIER INOXYDABLE TREMPÉ ET CARBURE DE TUNGSTÈNE

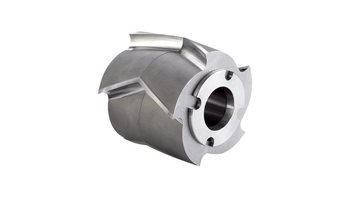

standard rotor with V-cutting edges and fixed knives made of hardened, stainless steel
N° 45.5100.00
Standard rotor with V-cutting edges and fixed knives made of hardened, stainless steel

The standard rotor made of hardened, stainless steel with V-cutting edges and fixed knives is suited primarily for comminution of tough-elastic materials and films due to its especially acute cutting angle and the high cutting action that results.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our cutting tool sets of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
Standard rotor with V-cutting edges and fixed knives
General specifications
MaterialStainless steel – 1.4112
ISO/EN/DIN codeX90CrMoV18 / EN 10088
Chemical composition
ElementShare %
Iron – Fe79 - 77
Chromium – Cr17 - 19
Silicon – Si1.0
Manganese – Mn1.0
Molybdenum – Mo0.9 - 1.3
Carbon – C0.85 - 0.95
Vanadium – V0.07 - 0.012
Phosphorus – P0.04
Sulphur – S0.015
Physical and mechanical properties
Density 7.7 g/cm³ ;
Hardness56 - 58 HRC


Explanations on hardness data

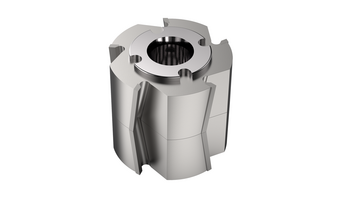

rotor with V-cutting edges and fixed knives made of hardmetal tungsten carbide
N° 45.5370.00
Rotor with V-cutting edges and fixed knives made of hardmetal tungsten carbide

This rotor with V-cutting edges and fixed knives made of hardmetal tungsten carbide comminutes the grinding material through impact and cutting forces and is suitable for hard-tough materials.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our cutting tool sets of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
1. Rotorknives
General Specification
Material

Hardmetal tungsten carbide – WC
Chemical composition
ElementShare %
Tungsten carbide – WC74
Tantalum carbon - TaC 15
Cobalt – Co 11
Physical and mechanical properties
Density 12.4 g/cm³
Hardness 89.5 HRA


2. Rotorbody
General specifications
MaterialStainless steel– 1.4404
ISO/EN/DIN CodeX2CRNiMO17-12-2 /DIN SEW410
Chemical composition
ElementShare %
Iron – Fe68.3 - 62.8
Chromium – Cr 16.5. - 18.5
Nickel – Ni10.0 - 13.0
Molybdenum – Mo 2.0 - 2.5
Manganese – Mn2.0
Silicon – Si1.0
Phosphorus – P0.045
Carbon – C0.03
Sulphur – S0.015
Other – 0.11
Physical and mechanical properties
Density 8.0 g/cm³
Hardness 45 HB


Explanations on hardness data

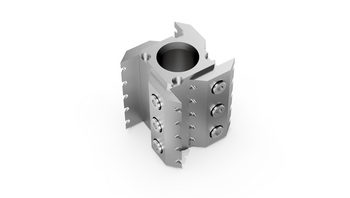

Rotor with notched edges and fixed knives made of hardened steel
N° 45.5192.00
Rotor with notched edges and fixed knives made of hardened stainless steel

The rotor with notched edges and fixed knives made of hardened stainless steel is ideal for comminuting samples with residual moisture, such as food, feed or plants, and temperature-sensitive samples, such as plastics.
Due to its notched edges, the grinding chamber never closes completely, thus allowing optimum air flow. This significantly increases the throughput and makes the use of very fine sieves for larger quantities possible in the first place. The rotor knives have two notched cutting edges and can be easily turned after one side is used up.
Your advantage: twice the service life.


ANALYSE DE RÉFÉRENCE
Standard rotor with V-cutting edges and fixed knives
General specifications
MaterialStainless steel – 1.4112
ISO/EN/DIN codeX90CrMoV18 / EN 10088
Chemical composition
ElementShare %
Iron – Fe79 - 77
Chromium – Cr17 - 19
Silicon – Si1.0
Manganese – Mn1.0
Molybdenum – Mo0.9 - 1.3
Carbon – C0.85 - 0.95
Vanadium – V0.07 - 0.012
Phosphorus – P0.04
Sulphur – S0.015
Physical and mechanical properties
Density 7.7 g/cm³ ;
Hardness56 - 58 HRC


Explanations on hardness data

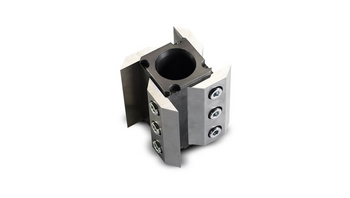

rotor with straight cutting edges and fixed knives made of hardened, stainless steel
N° 45.5185.00
Rotor with straight cutting edges and fixed knives made of hardened, stainless steel

The rotor made of tool steel with straight cutting edges which run parallel to the fixed knives is suitable for easily cut material, such as hay, straw, fibrous or biological materials. The rotor knives may be turned, since they have 2 cutting edges. Your advantage: doubling the life span of your rotor knives.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our cutting tool sets of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
1. Rotorknives
General specifications
MaterialTool steel – 1.2379
ISO/EN/DIN codeX155CrVMo12/1 / 59350
Chemical composition
ElementShare %
Iron – Fe85.79 – 82.14
Carbon – C1.45 – 1.6
Silicon – Si0.1 - 0.6
Manganese – Mn0.2 – 0.6
Phosphorus – P0.03
Sulphur – S0.03
Chromium – Cr11 – 13
Molybdenum – Mo0.7 - 1
Tungsten – W0.7 - 1
Physical and mechanical properties
Density 7.85 g/cm³ ;
Hardness58-60 HV


2. Rotor body
General specifications
MaterialConstruction steel – 1.0037 – FeP03
ISO/EN/DIN codeS235 JR
Chemical composition
ElementShare %
Iron – Fe98.34
Carbon – C0.17
Manganese – Mn1.4
Phosphorus – P0.045
Sulphur – S0.045
Chromium – Cr1.660
Physical and mechanical properties
Density7.85 g/cm³
Hardness20-95 HV


Explanations on hardness data

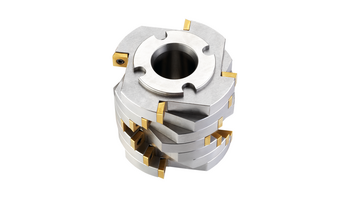

disk milling cutter rotor with indexable inserts and fixed knives made of hardmetal tungsten carbide
N° 45.5200.00
Disk milling cutter rotor with indexable inserts and fixed knives made of hardmetal tungsten carbide

Disk milling cutting rotor: The especially robust disk milling cutter rotor with indexable inserts and fixed knives made of hardmetal tungsten carbide can even comminute circuit board scrap with glass fibre residue and copper cable.
Quadruple service life: With the disk milling cutter rotor, the cutting plates can be turned four times and replaced individually. Damage or wear are no longer a reason to buy a completely new rotor.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our cutting tool sets of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
1. Rotorknives
General Specification
Material

Hardmetal tungsten carbide – WC
Chemical composition
ElementShare %
Tungsten carbide – WC74
Tantalum carbon - TaC 15
Cobalt – Co 11
Physical and mechanical properties
Density 12.4 g/cm³
Hardness 89.5 HRA


2. Rotorbody
General specifications
MaterialStainless steel– 1.4404
ISO/EN/DIN CodeX2CRNiMO17-12-2 /DIN SEW410
Chemical composition
ElementShare %
Iron – Fe68.3 - 62.8
Chromium – Cr 16.5. - 18.5
Nickel – Ni10.0 - 13.0
Molybdenum – Mo 2.0 - 2.5
Manganese – Mn2.0
Silicon – Si1.0
Phosphorus – P0.045
Carbon – C0.03
Sulphur – S0.015
Other – 0.11
Physical and mechanical properties
Density 8.0 g/cm³
Hardness 45 HB


Explanations on hardness data

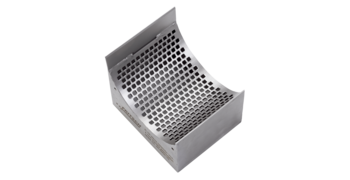

Cassettes à tamis en acier inoxydable 316L

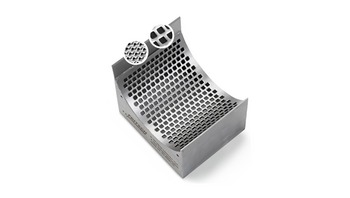

Les cassettes à tamis déterminent la granulométrie finale de l'échantillon. Elles assurent un écart constant entre le rotor et l'échantillon et donc le meilleur résultat possible. Des cassettes à tamis à perforation trapézoïdale et à perforation carrée sont disponibles. Les cassettes à tamis à perforation trapézoïdale provoquent une fragmentation supplémentaire résultant du cisaillement plus important. Les cassettes à tamis à perforation carrée sont recommandées pour fragmenter des matériaux cassants et des matériaux de finesse moyenne à plage granulométrique étroite. Les cassettes à tamis sont aussi disponibles avec d'autres perforations.

CHOISISSEZ UNE CASSETTE À TAMIS

CASSETTES À TAMIS EN ACIER INOXYDABLE 316L

0.2 mm trapezoidal perforation
N° 45.5405.10
0.2 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes  with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.25 mm trapezoidal perforation
N° 45.5410.10
0.25 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.5 mm trapezoidal perforation
N° 45.5420.10
0.5 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.75 mm trapezoidal perforation
N° 45.5430.10
0.75 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1 mm trapezoidal perforation
N° 45.5440.10
1 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1.5 mm trapezoidal perforation
N° 45.5450.10
1.5 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm trapezoidal perforation
N° 45.5460.10
2 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm square perforation
N° 45.5495.10
2 mm square perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
4 mm square perforation
N° 45.5501.10
4 mm square perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
6 mm square perforation
N° 45.5513.10
6 mm square perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
8 mm square perforation
N° 45.5514.10
8 mm square perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
10 mm square perforation
N° 45.5515.10
10 mm square perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

ACCESSOIRES POUR BROYAGE SANS CHROME

Aide à la sélection

  • Caractéristiques des jeux d'outils de coupe de fragmentation sans chrome et applications recommandées

    Matériau et type de rotor Composant principal du matériau Résistance à l'abrasion Densité en g/cm³ Convient au broyage de
    acier à outil sans chrome Fe relativement bonne 7,8

    Rotor avec lames en V et contre-couteaux
    référence 45.5112.00




    Rotor avec couteaux droits et contre-couteaux
    référence 45.5012.00



    les deux rotors sont parfaitement adaptés à la préparation d'échantillons selon RoHS, par exemple pour prouver la présence de chrome hexavalent et pour l'analyse XRF

    échantillons cassants, durs, matériaux et films viscoélastiques

    échantillons cassants et durs et matériaux facilement sectionnables de type foin, paille, matériaux fibreux et biologiques

Lorsqu'une préparation d'échantillon conforme à RoHS (destinée par exemple à prouver la présence de chrome hexavalent) ou à des analyses XRF doit impérativement assurer une fragmentation garantie sans chrome, les jeux d'outils de coupe FRITSCH en acier à outil sans chrome et les cassettes à tamis en acier sans chrome DC01 vous donnent la sécurité nécessaire.

CHOISISSEZ un jeu d'outils de coupe et une cassette à tamis sans chrome

JEUX D'OUTILS DE COUPE EN ACIER À OUTIL SANS CHROME

rotor with V-cutting edges and fixed knives
N° 45.5112.00
Rotor with V-cutting edges and fixed knives made of chromium-free tool steel

The rotors made of chromium-free tool steel are especially recommended for the sample preparation according to RoHS and for the XRF-analysis. If a chromium-free size reduction is required for sample preparation according to RoHS – for example for verification of hexavalent chromium – or for XRF analysis, FRITSCH cutting tool sets of chromium-free tool steel offer this absolute assurance. Because for FRITSCH Cutting Mills, the fixed knives are always of the same material as the cutting edges of the rotor.


This rotor with V-cutting edges and fixed knives made of chromium-free tool steel is suited primarily for comminution of tough-elastic materials and films due to its especially acute cutting angle and the high cutting action that results.


For all other applications we recommend our cutting tool set made of tool steel and hardmetal tungsten carbide, since these are harder and therefore more resilient against abrasion.


ANALYSE DE RÉFÉRENCE
Rotor knives and rotor body
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W3
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P< 0.035
Sulphur – S< 0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness50 - 55 HRC


Explanations on hardness data
rotor with straight cutting edges and fixed knives
N° 45.5012.00
Rotor with straight cutting edges and fixed knives made of  chromium-free tool steel

The rotors made of chromium-free tool steel are especially recommended for the sample preparation according to RoHS and for the XRF-analysis. If a chromium-free size reduction is required for sample preparation according to RoHS – for example for verification of hexavalent chromium – or for XRF analysis, FRITSCH cutting tool sets of chromium-free tool steel offer this absolute assurance. Because for FRITSCH Cutting Mills, the fixed knives are always of the same material as the cutting edges of the rotor.


The rotor made of chromium-free tool steel with straight cutting edges which run parallel to the fixed knives is suitable for easily cut material, such as hay, straw, fibrous or biological materials. The rotor knives may be turned, since they have 2 cutting edges. Your advantage: doubling the life span of your rotor knives.


For all other applications, we recommend our cutting tool set made of tool steel and hardmetal tungsten carbide, since these are harder and therefore more resilient against abrasion.


ANALYSE DE RÉFÉRENCE
1. Rotor knives
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W3
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P< 0.035
Sulphur – S< 0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness50 - 55 HRC


2. Rotor body
General specifications
MaterialConstruction steel – 1.0037
ISO/EN/DIN codeS235- JR formerly St 37
Chemical composition
ElementShare %
Iron – Fe98.34
Carbon – C0.17
Silicon – Si0.3
Manganese – Mn1.4
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density 7.85 g/cm³
Hardness ~ 65 HRA


Explanations on hardness data

CASSETTES à TAMIS EN ACIER SANS CHROME DC01

0.5 mm trapezoidal perforation
N° 45.5420.09
0.5 mm trapezoidal perforation

Sieve cassettes determine the final fineness of a sample. Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


Sieve cassettes made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF analysis. For all other applications sieve cassettes made stainless steel can be used since these are harder and therefore more resilient against abrasion.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
1 mm trapezoidal perforation
N° 45.5440.09
1 mm trapezoidal perforation

Sieve cassettes made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF analysis. For all other applications sieve cassettes made stainless steel can be used since these are harder and therefore more resilient against abrasion.


Sieve cassettes determine the final fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
2 mm trapezoidal perforation
N° 45.5460.09
Sieve cassette 2 mm trapezoidal perforation made of chromium-free steel DC01

Sieve cassettes made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF analysis. For all other applications sieve cassettes made stainless steel can be used since these are harder and therefore more resilient against abrasion.


Sieve cassettes determine the final fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
4 mm square perforation
N° 45.5500.09
4 mm trapezoidal perforation

Sieve cassettes made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF analysis. For all other applications sieve cassettes made stainless steel can be used since these are harder and therefore more resilient against abrasion.


Sieve cassettes determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
6 mm square perforation
N° 45.5510.09
6 mm square perforation

Sieve cassettes made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF analysis. For all other applications sieve cassettes made stainless steel can be used since these are harder and therefore more resilient against abrasion.


Sieve cassettes determine the final fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data

Dispositif d‘aspiration d‘échantillon avec cyclones

La combinaison brevetée du broyeur à couteaux universel et du cyclone haute performance, du cyclone standard ou du cyclone pour petites quantités facilite le nettoyage et le remplissage, permet d'utiliser des cassettes à tamis plus fines pour obtenir des granulométries finales plus petites, accélère le débit, maintient la contrainte thermique des échantillons à un niveau réduit, même lorsque les échantillons sont difficiles à broyer.

CHOISISSEZ UN CYCLONE, UN SYSTÈME D'ASPIRATION ET DES ACCESSOIRES

Cyclone haute performance

Made of stainless steel 304 with flexible tube connection, incl. sample glass 1 litre
N° 19.1900.00
Made of stainless steel 304 with flexible tube connection, incl. sample glass 1 litre

The FRITSCH high-performance Cyclone separator completely made of stainless steel 304 is particularly indispensable in the analytical sector and in the food and pharmaceutical industries, and for the processing of heterogeneous mixtures of material, e.g. in the cement industry.
Due to its high surface quality, it offers enhanced resistance to corrosive media such as alkalis and acids and is especially easy to clean with a wide range of possible cleaning agents, without leaving any residues. In addition, it can be completely dismantled, fully emptied, flooded and sterilised, and thus offers reliable protection against cross-contamination.


The advantages of the high-performance Cyclone separator at a glance
- Faster throughput
- Improved discharge of material from the grinding chamber
- Additional strong cooling of the grinding material and grinding parts
- Efficient size reduction of temperature-sensitive samples, electrostatically-charged plastics or powder coatings
- Ideal for light materials, small sample quantities and finer sieve sizes
- Highly efficient continuous comminution of large quantities


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi1810
Chemical composition
ElementShare %
Iron – Fe66.805
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.8 g/cm³
HardnessHRB 96


Explanations on hardness data
With solid piping made of stainless steel 304, incl. sample glass 1 litre
N° 19.1940.00

The FRITSCH high-performance Cyclone separator completely made of stainless steel 304 is particularly indispensable in the analytical sector and in the food and pharmaceutical industries, and for the processing of hetero geneous mixtures of material, e.g. in the cement industry. Due to its high surface quality, it offers enhanced resistance to corrosive media such as alkalis and acids and is especially easy to clean with a wide range of possible cleaning agents, without leaving any residues. In addition, it can be completely dismantled, fully emptied, flooded and sterilised, and thus offers reliable protection against cross-contamination.


The advantages of the high-performance Cyclone separator at a glance
- Faster throughput
- Improved discharge of material from the grinding chamber
- Additional strong cooling of the grinding material and grinding parts
- Efficient size reduction of temperature-sensitive samples, electrostatically-charged plastics or powder coatings
- Ideal for light materials, small sample quantities and finer sieve sizes
- Highly efficient continuous comminution of large quantities








ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi1810
Chemical composition
ElementShare %
Iron – Fe66.805
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.8 g/cm³
HardnessHRB 96


Explanations on hardness data

Récipients collecteur pour cyclone haute performance et cyclone standard

sample glass 1 litre
N° 83.3250.00
Sample glass 1 litre

Sample glass 1 litre for sample exhaustion with the high-performance Cyclone separator.


sample glass 2 litres
N° 83.3260.00
Sample glass 2 litres

The sample glass with 2 litres volume is recommended for sample exhaustion with the high-performance Cyclone separator for sample discharges larger than 1000 ml, since only a 1 litre sample glass is included in the delivery of the high-performance Cyclone separator.


sample glass 5 litres
N° 83.3270.00
Sample glass 5 litres

The sample glass with 5 litres volume is recommended for sample exhaustion with the high-performance Cyclone separator for sample discharges larger than 1000 ml, since only a 1 litre sample glass is included in the delivery of the high-performance Cyclone separator.


Collecting vessel, 20 litres made of stainless steel
N° 45.8040.00
Collecting vessel, 20 litres made of stainless steel

The collection vessel 20 litres is recommended for sample exhaustion with the high-performance Cyclone separator for sample discharges larger than 1000 ml, since only a 1 litre sample glass is included in the delivery of the high-performance Cyclone separator.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
Collecting vessel, 60 litres made of stainless steel
N° 45.8050.00
Collecting vessel, 60 litres made of stainless steel

The collection vessel 60 litres is recommended for sample exhaustion with the high-performance Cyclone separator for sample discharges larger than 1000 ml, since only a 1 litre sample glass is included in the delivery of the high-performance Cyclone separator.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

Cyclone pour petites quantités

Small volume Cyclone separator
N° 19.1930.00
Small volume Cyclone separator

Small volume Cyclone separator made of plastic for sample exhaustion of small sample quantities, incl. 500 ml sample glass.
Especially for exhaustion of small sample quantities, we designed the compact FRITSCH small volume Cyclone separator. It is made of plastic, can be dismantled completely and cleaned in a dishwasher for reliably preventing contaminations. The FRITSCH small volume Cyclone separator must be connected to an exhaust system: order no. 43.9070.00.


Especially convenient: The comminuted sample is drawn directly into the screwed-on 500 ml sample glass, in which it can also be transported and stored. Alternatively a sample glass 250 ml can also be screwed-on and ordered: order no. 27.1450.00.


Récipients collecteurs pour cyclone pour petites quantités

Sample glass 250 ml
N° 27.1450.00
Sample glass 250 ml

Sample bottle with screw lid, thread of sample bottle GL55, sample bottle can be used with dividing heads, division ratio 1:8 and 1:10.
Furthermore a sample vessel 32 ml with lid, article-number 83.3190.16, is available, which can be inserted in the sample bottles 250 ml and 500 ml for dividing smallest sample quantities.
The sample glass is recommended for sample exhaustion with the small volume Cyclone separator for sample discharges smaller than 500 ml, since only a 500 ml sample glass is included in the delivery of the small volume performance Cyclone separator.


Sample glass 500 ml
N° 27.1460.00
Sample glass 500 ml

Sample bottle with screw lid, thread of sample bottle GL55.
Sample bottle can be used with dividing heads, division ratio 1:8.
Furthermore a sample vessel 32 ml with lid, article-number 83.3190.16, is available, which can be inserted in the sample bottles 250 ml and 500 ml for dividing smallest sample quantities.
Sample glass can also be used for sample exhaustion with the small volume Cyclone separator.


Système d'aspiration et accessoires pour cyclone haute performanc et Cyclone pour petites quantités

dust exhaust system, dust category „M” according to DIN EN 60335-2-69
N° 43.9070.00
Exhaust system, dust category "M" according to DIN EN 60335-2-69

The exhaust system, dust category "M" according to DIN EN 60335-2-69 for 230 V/1~, 50/60 Hz, 1000 Watt is versatile:


For combination with the high performance and small volume cyclones.
To operate the FRITSCH Cyclones you need an exhaust system. The strong airflow ensures simple feeding, increases throughput, and reduces the thermal load of the samples. The high performance and small volume Cyclone separator can be combined with Universal-Cutting Mill PULVERISETTE 19, the Variable Speed Rotor Mill PULVERISETTE premium line and classic line even passive – without sample exhaust.


For cooling of the Variable Speed Rotor Mill PULVERISETTE 14 premium line
By connecting the exhaust system with the connecting piece order no. 14.4214.00, the cooling of the mill can easily be enhanced.


For combination with the Jaw Crusher PULVERISETTE 1 premium line
The exhaust system is simply connected and operated via a start and stop button on the instrument – perfect dust exhaust due to integrated dust exhaust channels for dust free operation.


For connecting to Disk Mill PULVERISETTE 13 premium line
The exhaust is simply connected to the PULVERISETTE 13 premium line and operated via a start and stop button on the instrument – for dust free comminution.


For connecting to the Jaw Crusher PULVERISETTE 1, Modell I + II classic line
Simply connect the exhaust system to the integrated connection of the PULVERISETTE 1. Fine dust arising during comminution is automatically removed. The exhaust system is also very useful when cleaning the grinding parts.


For connecting to the Disk Mill PULVERISETTE 13 classic line
Optionally, the exhaust system can be combined with the connecting piece order no. 13.1450.00, to the PULVERISETTE 13 classic line. Fine dust arising during comminution is automatically removed. The exhaust system is also very useful when cleaning the grinding parts.


For vacuuming the sample material during dry measurements
The exhaust system is necessary to vacuum the sample material during measurements with the Dry Dispersion Unit and Falling Chute of the Laser Particle Sizer ANALYSETTE 22 NanoTec. Please keep in mind though, that this exhaust system does not contain a fine dust filter and therefore fine dust may escape. Please consider the valid occupational health and safety regulations. For dry measuring with the Laser Particle Sizer an exhaust system with fine dust filter is offered, please refer to order no. 43.9060.00.


fleece filter bag for exhaust system (pack = 5 pieces)
N° 43.9055.00

1 pack = 5 pieces
One pack is included in the scope of delivery of the exhaust system (article No. 43.9070.00).
These fleece filter bags should be used for the vacuuming off of fine, dry materials.
For the vacuuming off of coarse, wet materials are plastic bags available (article no. 43.9052.00).


plastic bag for exhaust system (pack = 5 pieces)
N° 43.9052.00

1 pack = 5 pieces

One pack is included in the order of the exhaust system (article No. 43.9070.00).
These plastic bags should be used for the vacuuming off of coarse, wet materials.
For the vacuuming off of fine, dry materials are paper filter bags available (article no. 43.9055.00).


SUPPORTS

Un support universel, un support en acier inoxydable 316L et un support à roulettes sont disponibles. Ils représente une base très stable, peu encombrante et à géométrie variable pour le broyeur.

CHOISISSEZ UN SUPPORT

SUPPORTS

universal support stand
N° 45.5820.00
Stand cpl. welded, electrochemically polished made of stainless steel 316L
N° 45.5829.00

Stand cpl. welded, electrochemically polished made of stainless steel 316L.
This stand is recommended and used for the free installation of both models of the Universal-Cutting Mill PULVERISETTE 19 in the corrosion resistant stainless steel version 316 L.
A stand with wheels for the Universal Cutting Mill PULVERISETTE 19 and Power Cutting Mill PULVERISETTE 25 is also available on request.


stand with wheels
N° 45.5800.00

The stand with wheels offers the Universal Cutting Mills PULVERISETTE 19 and the Power Cutting Mill PULVERISETTE 25 a space-saving and spatially variable basis.


CERTIFICATION

Documentation IQ/OQ (formulaire - à remplir soi-même) aidant à la qualification du matériel dans le service de gestion de qualité, pour le broyeur universel à couteaux PULVERISETTE 19.

CHOISISSEZ LA CERTIFICATION

CERTIFICATION

IQ/OQ documentation (questionnaire format - implementation not included)
N° 96.0250.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Universal Cutting Mill PULVERISETTE 19.


Référence
19.1030.00
Janine Allkofer
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Téléphone +49 67 84 70 0

Base de données sur les protocoles de broyage

EFFECTUEZ UN TEST

TEST DE BROYAGE GRATUIT

Faites-nous parvenir un échantillon, nous le soumettrons à un test de broyage - nous vous enverrons un compte rendu individuel de broyage.
