Broyeur à disques oscillants

PULVERISETTE 9

Référence
09.5000.00
Accessoires

Veuillez tenir compte des points suivants : Le broyeur à disques oscillants PULVERISETTE 9 est livré sans garniture de broyage, dans sa version standard. Les garnitures de broyage sont disponibles en 5 matériaux différents et en 3 tailles, de contenance comprise entre 50 ml à 250 ml, et doivent être commandées au titre des accessoires.

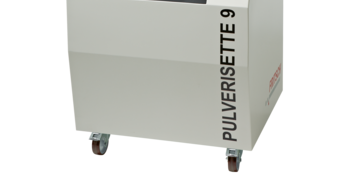

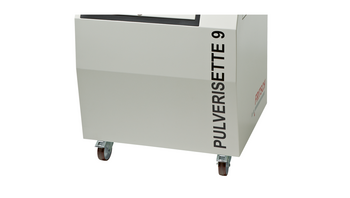

FRITSCH propose également des roulettes robustes, équipées de freins de blocage, destinées au PULVERISETTE 9.

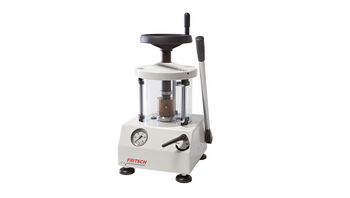

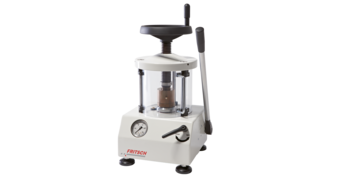

Une presse à comprimés hydraulique pratique, à commande manuelle, à force de pression de 250 kN, est elle aussi disponible.

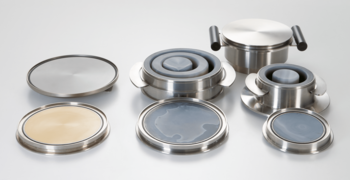

GARNITURES DE BROYAGE

Aide à la sélection

  • Éléments broyeurs et volumes

    Volumes Volume utile (échantillon) Éléments broyeurs
    50 ml 10 - 50 ml 1 noyau
    100 ml 30 - 100 ml 1 noyau + 1 anneau
    250 ml 75 - 250 ml 1 noyau + 1 anneau
  • Données matériau des garnitures de broyage

    Matériau Composant principal du matériau Densité en g/cm³ Résistance à l'abrasion Type d'échantillon
    acier trempé, inoxydable Fe - Cr 7,7 bonne échantillons durs, cassants
    acier à outil sans chrome Fe 7,8 relativement bonne échantillons durs, cassants
    métal dur carbure de tungstène WC 14,3 très bonne échantillons très durs, abrasifs
    agate SiO2 2,65 bonne échantillons mous à mi-durs, cassants, fibreux
    oxyde de zirconium ZrO2 5,7 bonne échantillons mi-durs, cassants, fibreux, broyage sans métaux

Veuillez choisir au moins une garniture de broyage. Les garnitures de broyage sont disponibles en 5 matériaux différents et en 3 tailles, de contenance comprise entre 50 ml à 250 ml. La dureté du matériau de la garniture de broyage doit toujours être supérieure à celle du matériau à broyer.

Choisissez la garniture de broyage

GARNITURES DE BROYAGE

hardened, stainless steel - Fe - Cr - useful volume 250 ml
N° 48.5125.00

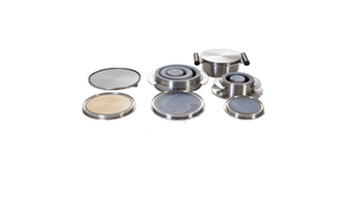

Grinding set hardened, stainless steel, useful volume 250 ml

For the comminution of brittle, hard samples.
General material specification:
Material: hardened, stainless steel - 1.4125
Abrasion resistance: good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. hardened, stainless steel or tungsten carbide, shorten the grinding time.


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardened, stainless steel - Fe - Cr - useful volume 100 ml
N° 48.5110.00
Grinding set hardened, stainless steel, useful volume 100 ml

For the comminution of brittle, hard samples.
General material specification:
Material: hardened, stainless steel - 1.4125
Abrasion resistance: good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. hardened, stainless steel or tungsten carbide, shorten the grinding time.


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardened, stainless steel - Fe - Cr - useful volume 50 ml
N° 48.5105.00
Grinding set hardened, stainless steel, useful volume 50 ml

For the comminution of brittle, hard samples.
General material specification:
Material: hardened, stainless steel - 1.4125
Abrasion resistance: good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. hardened, stainless steel or tungsten carbide, shorten the grinding time.


ANALYSE DE RÉFÉRENCE
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
chromium-free tool steel - Fe - useful volume 250 ml
N° 48.5525.00
Grinding set chromium-free tool steel, useful volume 250 ml

For the comminution of brittle, hard samples


General material specification:
Material: chromium-free tool steel -1.1740
Abrasion resistance: fairly good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time


ANALYSE DE RÉFÉRENCE
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W3
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P< 0.035
Sulphur – S< 0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness50 - 55 HRC


Explanations on hardness data
chromium-free tool steel - Fe - useful volume 100 ml
N° 48.5510.00
Grinding set chromium-free tool steel, useful volume 100 ml

For the comminution of brittle, hard samples


General material specification:
Material: chromium-free tool steel -  1.1740
Abrasion resistance: fairly good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W3
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P< 0.035
Sulphur – S< 0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness50 - 55 HRC


Explanations on hardness data
chromium-free tool steel - Fe - useful volume 50 ml
N° 48.5505.00
Grinding set chromium-free tool steel, useful volume 50 ml

For the comminution of brittle, hard samples


General material specification:
Material: chromium-free tool steel -  1.1740
Abrasion resistance: fairly good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W3
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P< 0.035
Sulphur – S< 0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness50 - 55 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - useful volume 250 ml
N° 48.5225.00
Grinding set hardmetal tungsten carbide, useful volume 250 ml

For the comminution of very hard, abrasive  samples

General material specification:
Material:hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: very hard, abrasive samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.











ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
hardmetal tungsten carbide - WC - useful volume 100 ml
N° 48.5210.00
Grinding set hardmetal tungsten carbide, useful volume 100 ml

For the comminution of very hard, abrasive  samples


General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: very hard, abrasive samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.



ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
hardmetal tungsten carbide - WC - useful volume 50 ml
N° 48.5205.00
Grinding set hardmetal tungsten carbide, useful volume 50 ml

For the comminution of very hard, abrasive  samples

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: very hard, abrasive samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
agate - SiO2 - useful volume 100 ml
N° 48.5310.00
Grinding set agate, useful volume 100 ml

for comminution of soft to medium-hard, brittle, fibrous samples

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft, medium-hard, brittle, fibrous samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
agate - SiO2 - useful volume 50 ml
N° 48.5305.00
Grinding set agate, useful volume 50 ml

for comminution of soft to medium-hard, brittle, fibrous samples


General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft, medium-hard, brittle, fibrous samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.








ANALYSE DE RÉFÉRENCE
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 -, useful volume 100 ml
N° 48.5410.00
Grinding set zirconium oxide, useful volume 100 ml

for comminution of medium-hard, brittle, fibrous samples and for metal-free grinding


General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: good
Suitable for: medium-hard, brittle, fibrous samples,  metal-free grinding
Detailed information about the material you will find in the element analysis.


Grinding sets of zirconium oxide are only suitable for grinding ceramic materials, minerals etc and never for hard-tough samples, such as metals.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
zirconium oxide - ZrO2 -, useful volume 50 ml
N° 48.5405.00
Grinding set zirconium oxide, useful volume 50 ml

for comminution of medium-hard, brittle, fibrous samples and for metal-free grinding


General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: good
Suitable for: medium-hard, brittle, fibrous samples, for metal-free grinding
Detailed information about the material you will find in the element analysis.


Grinding sets of zirconium oxide are only suitable for grinding ceramic materials, minerals etc. and never for hard-tough samples, such as metals.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialZirconium oxide – ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.5
Yttrium oxide – Y2O35.1
Si O2, CaO,MgO,Al2O3< 0.4
Physical and mechanical properties
Density6.0 g/cm³
Hardness12.5 x 10³ Nmm-² HV


Explanations on hardness data

AUTRES ACCESSOIRES

Les roulettes robustes, équipées de freins de blocage, permettent de déplacer le PULVERISETTE 9. Egalement disponible: une certification pour votre broyeur à disques oscillants.

CHOISISSEZ AUTRES ACCESSOIRES

ROULETTES DU BROYEUR À DISQUES OSCILLANTS

wheels for Vibrating Cup Mill
N° 93.4365.00
Wheels for Vibrating Cup Mill

Go mobile with the Vibrating Cup Mill: Order
- robust wheels with arresting brake for your Vibrating Cup Mill
- 1 Set includes 4 heavy-duty wheels, 2 with arresting brake


Certification

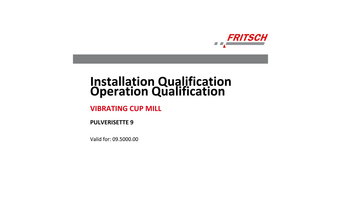

IQ/OQ documentation (questionnaire format - implementation not included)
N° 96.0300.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Vibrating Cup Mill PULVERISETTE 9.


Presse à Pastiller

Idéale pour des comprimés haut de gamme. La FRITSCH presse à pastiller  a comprimés permet de fabriquer, facilement et rapidement, des comprimés solides et hautement perméables à la fois, destinés à l'analyse par fluorescence de rayons X ou à la spectroscopie infrarouge.

CHOISISSEZ UNE PRESSE À COMPRIMÉS ET UN OUTIL DE PRESSAGE

Presse à Pastiller – manuel appareil sans outil de pressage

pellet press - manual instrument without pressing tool
N° 09.9510.00
Pellet Press - manual instrument without pressing tool

Ideal for high-quality pellets

The manually-operated hydraulic FRITSCH Pellet Press is ideal for fast and easy preparation of both: solid and highly permeable pellets of solid samples for X-ray fluorescence analysis or infrared spectroscopy. It's as easy as this: Fill in the sample, close the magnetically-held door and build-up the desired pressure using the hand lever - that's it. The pressure force is variable up to max. 250 kN and is automatically relieved in case of overstress. If your pellets require binding agents for stabilisation, please contact us and we will be happy to assist.
The pressing tools are not included with the pellet press and the following pressing tools are available:
Order no: 09.8040.00 - pressing tool for pellets with 40 mm dia.
Order no: 09.8032.00 - pressing tool for pellets with 32 mm dia.


Further pressing tools and automatic pellet presses with a pressure force of 400 kN can be delivered on request.


OUTILS DE PRESSAGE pour Presse à Pastiller 09.9510.00

pressing tool for pellets with 40 mm diameter
N° 09.8040.00

Pressing tool for pellets with 40 mm diameter:
If your pellets require binding agents for stabilisation, please contact us and we will be happy to assist.


Further pressing tools on request!


pressing tool for pellets with 32 mm diameter
N° 09.8032.00

Pressing tool for pellets with 32 mm diameter.
If your pellets require binding agents for stabilisation, please contact us and we will be happy to assist.


Further pressing tools on request!


Référence
09.5000.00
Helen Müller
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Téléphone +49 67 84 70 0

Base de données sur les protocoles de broyage

EFFECTUEZ UN TEST

TEST DE BROYAGE GRATUIT

Faites-nous parvenir un échantillon, nous le soumettrons à un test de broyage - nous vous enverrons un compte rendu individuel de broyage.
